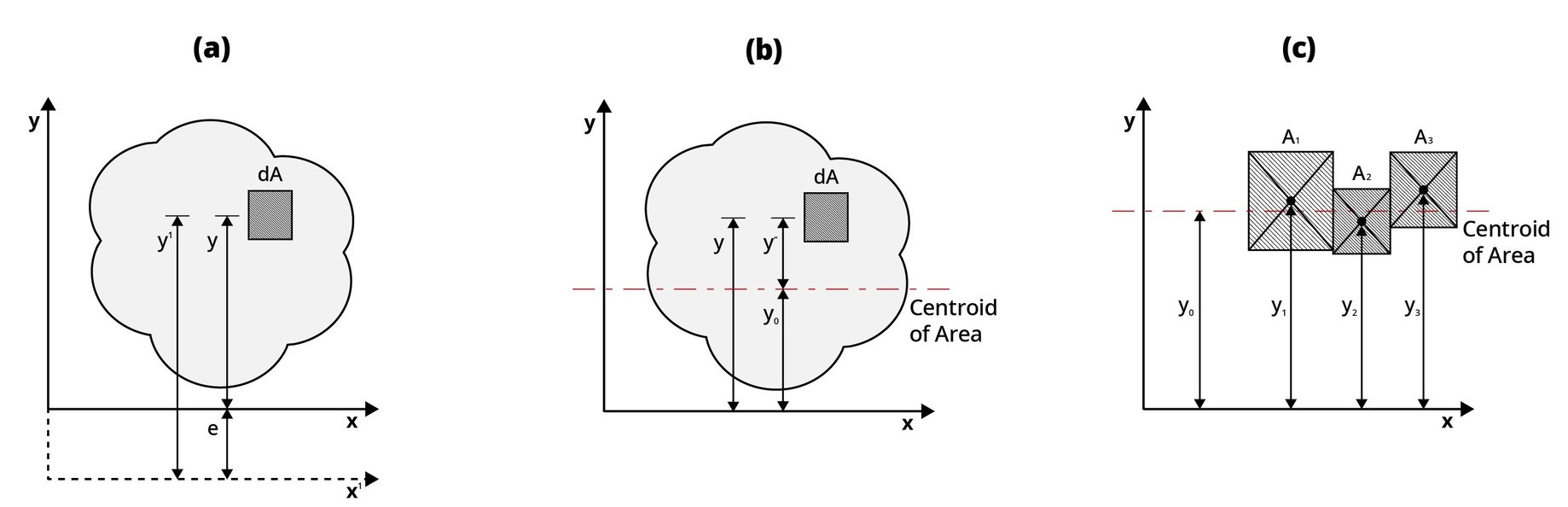

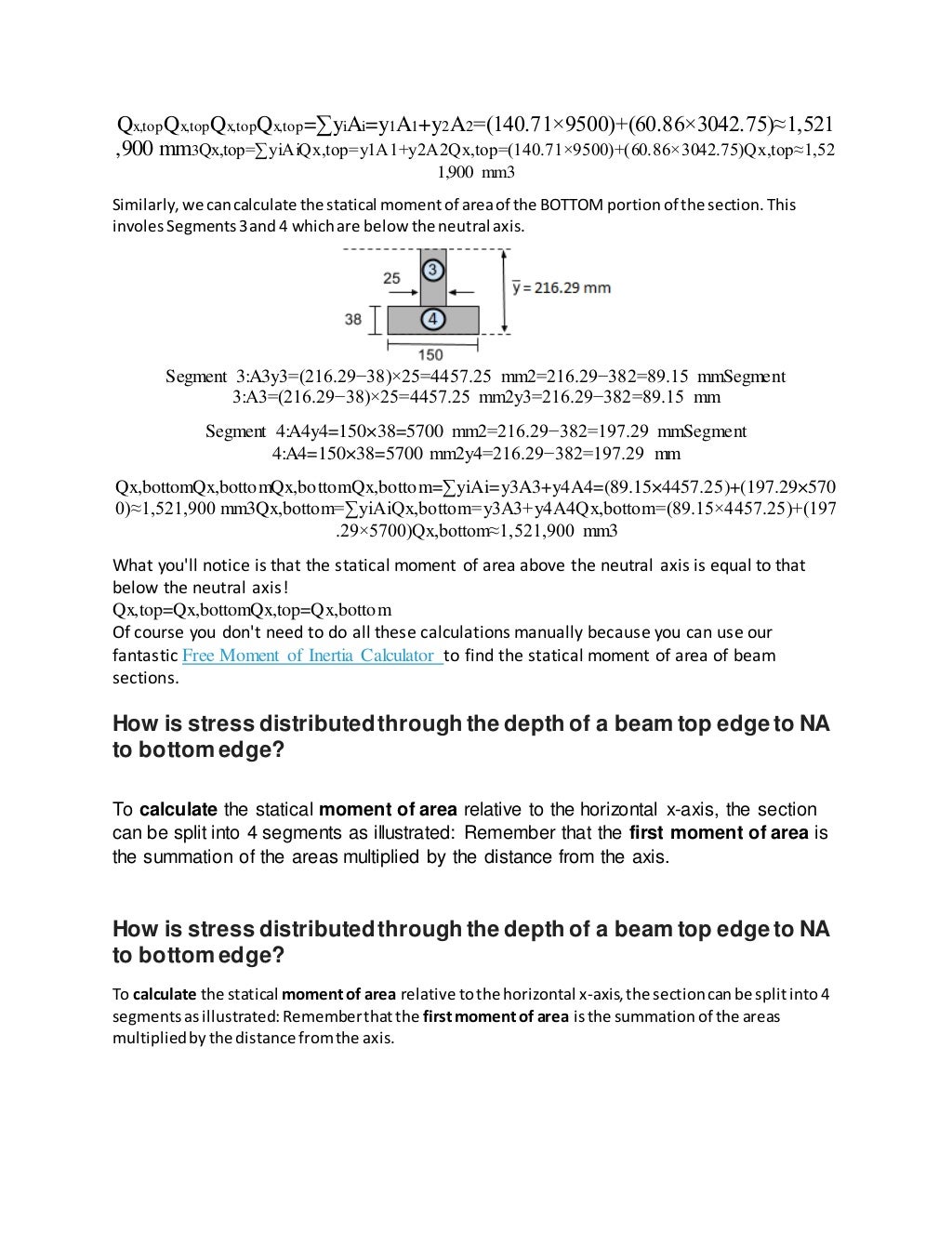

The first moment of area can be calculated by adding the product of the area of each section and the distance from the x-axis to the centroid of the section. When knowing the centroid location when the three sections are combined, the first moment of area can be calculated as the product of the total cross-sectional area and y 0 as seen in case.. First Moment of Area Ex.1 - Qy, west. Qy, west = First moment of area X1 = 1 / 2 = 0.5 A1 = 5 * 1 = 5. Qy, west = 0.5 * 5 = 2.5. Again, since the first moment of area in the Y-axis is taken about the centroid, the areas are equal. This is a great way to check the answer is correct, especially if you're in an exam!
First moment of area
5.4 The Moment Area Theorems
PPT Geometrical properties of crosssections PowerPoint Presentation ID5503906
Solved First moment of area (S) for different shapes (ove... PTC Community
Area moment of inertia circle derivation mazhuge
PPT APPENDIX A MOMENTS OF AREAS PowerPoint Presentation ID6305977
Image result for area moment of inertia Physics and mathematics, Engineering education
Solved 1Calculate first moment of area 2Calculate second
Geometric Properties of Sections Part I First Moment of Area
What is First Moment of Area? Mechanical Booster
First moment of area by integration Mathematics Stack Exchange
PPT APPENDIX A MOMENTS OF AREAS PowerPoint Presentation, free download ID6773036
First Moment of Area Definition, Formula, Uses, Calculation
PPT DAY 6 PowerPoint Presentation, free download ID3718908
5.4 The Moment Area Theorems
First moment of area

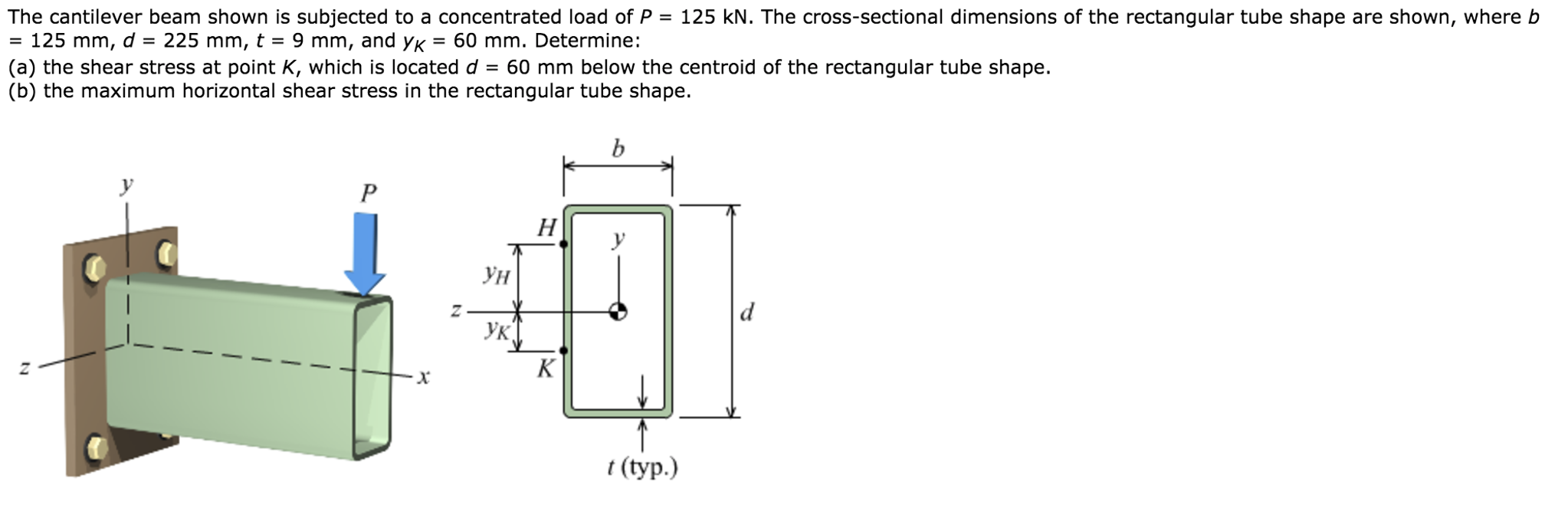

Solved Compute the value of of the first moment of area Q
First moment of area
Moment of inertia of a circle lasopasteam
[Solved] Determine the coordinates of the centroid, the first moment of area... Course Hero

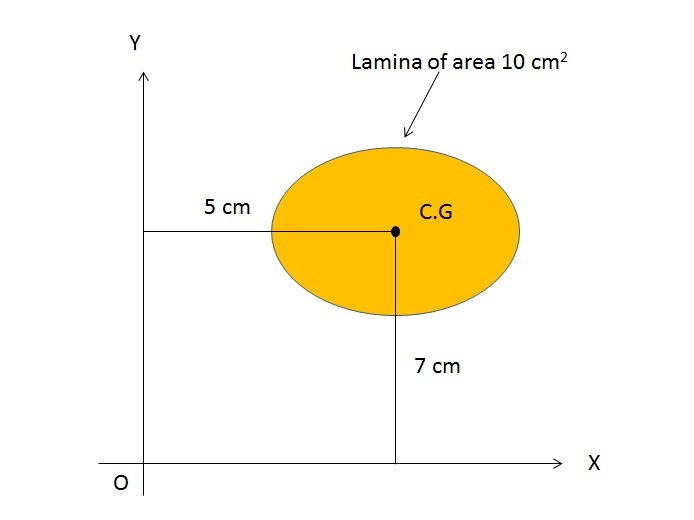

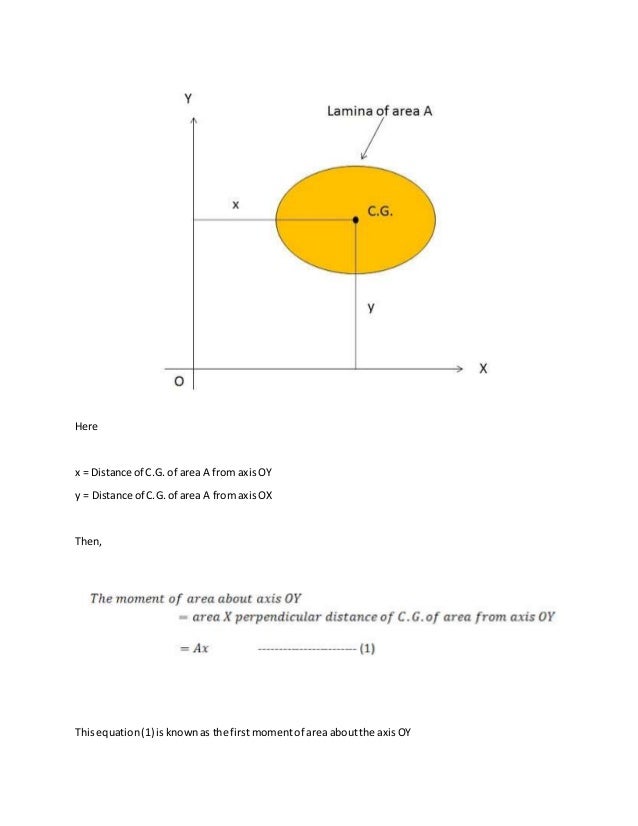

The first moment of area about axis OY = 10 x 5 = 50; The first moment of area about axis OX = 10 x 7 = 70; Here we have discussed what the first moment of area is, its formulas, and their applications in numerical problems. If you found this information helpful, please comment below.. 6.3.3 Centroid of a plane area. For any plane shape with area A, the centroid is a point with coordinates ( x C, y C) given by x C = 1 ∕ A M x, y C = 1 ∕ A M y, where M x is first moment of area about the y axis, and M y is first moment of area about the x axis. Example6.8:
